What is a Fuel Homogenizer
A fuel homogenizer is a mechanical device used in marine and industrial fuel systems to improve fuel quality by creating a more uniform and stable mixture. Through high-shear forces, it breaks large fuel particles into smaller, evenly sized droplets, and it finely disperses any water present. The result is a cleaner, more consistent fuel that supports efficient, reliable combustion in engines and related systems.
Fuel homogenizers are used with various fuels, including heavy fuel oil (HFO), marine diesel oil (MDO), marine gas oil (MGO), and biofuels. By ensuring uniformity, they help businesses achieve stable engine operation and compliance with emissions standards.
How Does a Fuel Homogenizer Work?
- Particle Shearing:
The homogenizer’s rotor and stator apply high-shear forces, reducing larger fuel particles into smaller, consistent droplets. - Water Emulsification:
Any water in the fuel is dispersed into a stable emulsion, improving combustion and reducing harmful emissions. - Fuel Blending:
Different fuel components are evenly mixed, ensuring reliable performance, even with fuels that vary in viscosity or composition.

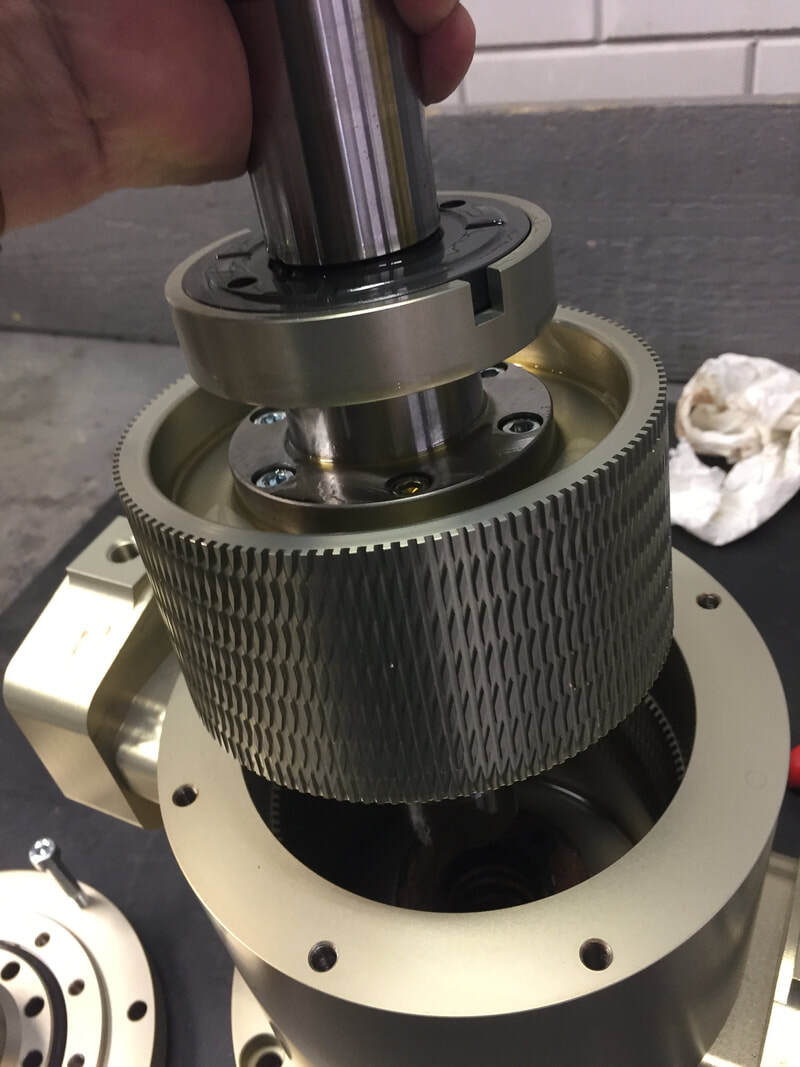

Inside a Rotor–Stator Fuel Homogenizer
Inside a rotor–stator fuel homogenizer: the rotating and stationary components that create mechanical shear.
The internal geometry explains how mechanical homogenization works. The rotor turns inside a stationary stator. As fuel passes through the treatment zone, the relative movement and profiled surfaces create high shear forces that break down fuel agglomerates and disperse them through the liquid.
The rotor–stator clearance is not a filter rating. Fuel passes through the chamber continuously; the unit does not collect contaminants in a filter element.
Rotor: The rotating component that transfers mechanical energy to the fuel.
Stator: The stationary component that works with the rotor to create the treatment zone.
Treatment zone: The space where the flowing fuel is exposed to mechanical shear.
Key Benefits of Fuel Homogenizers
- Uniform Fuel Composition: Consistent fuel mixing prevents engine damage caused by poorly blended fuels.
- Flexible with Additives: Use the homogenizer to either replace chemical additives entirely or improve their precision and efficiency.
- Reduced Emissions: By optimizing fuel combustion, homogenizers lower NOx emissions and particulate matter.
- Lower Costs: Reduce long-term expenses by minimizing the need for additives and lowering maintenance requirements.
- Engine Protection: Minimize sludge formation and fuel-related engine issues for smoother operations.
Key Components of a Fuel Homogenizer
- Base and Motor:
The motor drives the homogenization process, while the base provides support. - Magnetic Coupling:
Transfers motion without direct contact, minimizing wear and enhancing durability. - Homogenization Chamber (Rotor & Stator):
The core section where fuel particles are sheared and water is emulsified.
Common Applications
- Maritime Shipping:
Maintains fuel consistency for large marine engines. - Power Generation:
Supports steady combustion in plants using heavy fuels. - Petrochemical Processing:
Prepares fuels to meet operational and regulatory criteria. - Biofuels:
Improves stability and combustion of biofuel blends.
Fuel Homogenization: Practical Questions
Does a homogenizer replace a separator or filter?
No. Homogenization, separation and filtration perform different tasks. A homogenizer changes the physical distribution of fuel components. A separator removes water and contaminants by centrifugal separation, while a filter retains particles according to its design and filtration characteristics.
The technologies work together. Homogenization can reduce the amount of combustible material lost during fuel treatment, but hard contaminants still need to be removed before the fuel reaches the engine.
Does a fuel homogenizer grind cat fines?
Cat fines are hard, abrasive catalyst particles from the refining process, commonly containing aluminium and silicon. They can cause serious wear if they reach the engine.
The effect of homogenization on these particles depends on the equipment design. IPCO Power’s rotor–stator homogenizer does not grind cat fines. It uses fluid shear rather than closely fitting grinding surfaces, breaking down fuel agglomerates while hard inorganic particles pass through unaffected.
The separator and filters remain responsible for removing these contaminants. A statement about one homogenizer design should not automatically be applied to every type of homogenizer.
Does a homogenizer affect water separation?
Yes. Homogenization can disperse water into smaller droplets, which can make subsequent centrifugal water separation more difficult. The effect depends on the fuel, water content, treatment conditions and separator operation.
When homogenization is used before a separator, the objective is to retain usable fuel while the separator continues to remove water and inorganic contaminants. Water monitoring and provision to stop homogenization during abnormal water contamination help manage this application.
This is different from a dedicated water-fuel emulsion system. In that application, water is deliberately dosed and finely dispersed downstream of fuel purification for combustion treatment.
Where should a homogenizer be installed?
The installation position follows the treatment objective:
- Before the separator: To break down fuel agglomerates and reduce usable fuel discharged with separator sludge.
- In the engine fuel circulation system: To condition fuel close to injection, commonly after the final heaters and before the automatic filter.
- In a tank recirculation loop: To treat tank contents repeatedly and maintain a more uniform fuel condition.
- In a controlled water-fuel emulsion system: In the feed line before the mixing tank, where water dosing can be matched to the incoming fuel flow.
The precise position depends on the system layout, flow, temperature, pressure and control arrangement.
What is the difference between a homogenizer before and after the separator?
Before the separator, the main objective is to reduce fuel losses. Breaking down combustible agglomerates allows more usable fuel to remain in the fuel stream instead of leaving with the sludge.
After the separator, the objective is to condition the cleaned fuel for combustion. Fuel can re-agglomerate as it passes through the system, so treatment closer to the engine can provide an additional benefit even when homogenization is already used before separation.
The same mechanical principle can therefore serve two different purposes: retaining fuel during cleaning and improving its condition before injection.
Does a homogenizer change the chemical composition of fuel?
No. Mechanical homogenization changes the physical distribution of fuel components without chemically converting them. It breaks down agglomerates and disperses components more evenly; it does not increase the fuel’s calorific value or remove sulphur.
The mechanical process requires no chemical additives. If water, additives or another fuel are deliberately introduced, the resulting mixture changes because of that addition, rather than because homogenization creates a new fuel chemistry.
Can a homogenizer be used with VLSFO and biofuels?
Yes. Suitable homogenizer designs can be used with VLSFO and biofuel blends. Treatment can improve fuel consistency, and tank recirculation helps maintain more uniform tank contents.
Fuel grade alone does not determine the benefit. Blend composition, viscosity, temperature and the condition of the fuel are relevant, as are the equipment’s material compatibility and operating limits.
Fuel that has become difficult to handle or burn can still respond to mechanical treatment. Breaking down agglomerates and redistributing fuel components can restore practical usability, even though the process does not chemically convert the fuel. The outcome depends on the cause of the problem and the condition achieved after treatment.
Can homogenization make problematic fuel usable again?
Yes. Fuel that is difficult to pump, filter or burn is not necessarily beyond recovery. Where agglomeration or uneven distribution of fuel components is causing the problem, homogenization can break down those structures and improve the fuel’s handling and combustion characteristics.
IPCO Power has practical experience of making problematic fuel usable again through homogenization. This is an operational improvement: the fuel can become usable without its chemical composition being changed.
The relevant question is what makes the fuel difficult to use. Treatment should be assessed against that problem, with checks of the treated fuel and its performance in the intended system. Hard contaminants and excess water still require the appropriate removal steps.
Are fuel agglomerates the same as injection droplets?
No. Fuel agglomerates are clusters within the liquid fuel, such as groups of asphaltenes. A homogenizer treats these structures before the fuel reaches the engine.
Injection droplets are formed when the injection nozzle atomizes the fuel into the combustion chamber. Fuel conditioning can support improved atomization and combustion, but a measurement of agglomerate size upstream of the engine is not a direct measurement of the spray droplets produced by the nozzle.
Where do the fuel savings come from?
There are two main routes. Before the separator, less combustible material is discharged as sludge, so more of the purchased fuel remains available for use. Near the engine, improved fuel consistency and combustion can reduce the fuel required to deliver the same power.
These are different measurements. A reduction in sludge volume is not the same percentage reduction in engine fuel consumption, because separator sludge contains water and inorganic material as well as fuel.
A useful evaluation records operating conditions and distinguishes recovered fuel from changes in engine consumption. The electricity used by the homogenizer should also be included when calculating the net benefit.
How is the required homogenizer capacity selected?
Capacity is selected from the flow through the intended installation point, rather than engine power alone.
Before a separator, the relevant figure is the separator feed flow. In an engine circulation loop, it is the circulating flow, which can be considerably higher than actual engine fuel consumption. For tank treatment, capacity is selected together with tank volume, circulation arrangement and the required treatment time.
Fuel viscosity, operating temperature, pressure, allowable pressure drop and the number of simultaneously operating treatment lines also need to be considered.
