Water-in-Fuel and Water-in-Oil Monitoring for Maritime & Power Generation
Why Water Measurement Matters in Marine Fuel and Lubrication Systems
Even small amounts of water in marine fuels or lubrication oils can affect engine performance and equipment reliability. Water contamination may lead to corrosion, microbial growth, fuel instability, and increased wear in mechanical systems.
Whether operating on MGO, HFO, or biofuels, uncontrolled water levels can reduce combustion efficiency and increase maintenance requirements. In lubrication systems, water contamination can cause degradation of lubricants and accelerated wear of moving components.
Continuous inline water content measurement allows operators to detect contamination early and maintain safe operating conditions.
Benefits of Inline Water Content Monitoring
Inline monitoring provides real-time information about water levels in fuels and oils, allowing operators to respond before operational problems occur.
Inline water measurement enables operators to:
- Ensure fuel quality during bunkering operations
- Detect water ingress in fuel tanks and storage systems
- Monitor compatibility of fuel blends and biofuels
- Prevent long-term damage to engines and equipment
- Improve operational decision-making using real-time data
Unlike laboratory sampling, inline monitoring provides continuous detection of water contamination during operation.

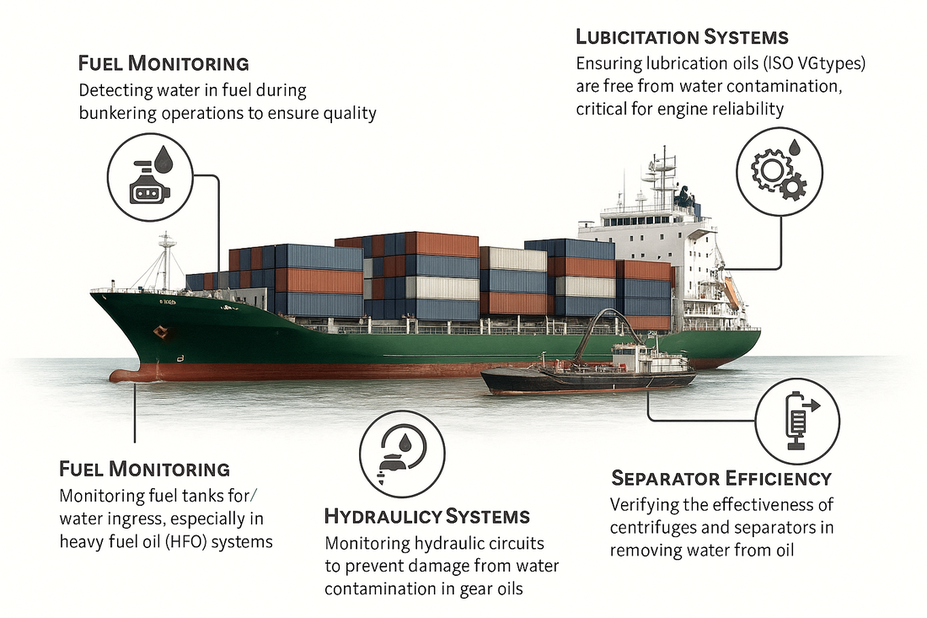

Typical Marine Applications
Water detection systems play an important role in several shipboard systems.
Fuel Monitoring:
Inline sensors can detect water contamination during fuel bunkering and fuel transfer operations.
Typical use cases include:
- Monitoring water content in marine fuel tanks
- Detecting water ingress in heavy fuel oil (HFO) systems
- Verifying fuel quality during fuel supply and blending
Lubrication Systems:
Lubrication oils must remain free from water contamination to maintain reliable operation of engines and rotating equipment.
Inline monitoring helps operators:
- Ensure lubrication oil quality (ISO VG types)
- Prevent water ingress in propulsion systems and gearboxes
- Protect generators and auxiliary machinery
Hydraulic Systems:
Hydraulic circuits can be sensitive to water contamination, particularly in marine environments.
Inline water monitoring helps prevent damage by detecting water contamination in:
- hydraulic power units
- gear oils
- control systems
Separator Efficiency:
Water cut measurement can also be used to verify the effectiveness of centrifugal separators in removing water from fuel.
This allows operators to:
- monitor separator performance
- verify separation efficiency
- detect abnormal operating conditions
Measurement Accuracy
When properly installed with appropriate stream conditioning, the ZT-100 Watercut Meter provides accurate measurements across a wide range of water content levels.
Typical measurement accuracy:
- ±0.01% for water content up to 5%
- ±0.1% for water content up to 10%
- ±0.2% for water content between 10% and 25%
- ±0.5% between 25% and 50%
- ±1% between 50% and 100%
Measurement performance depends on installation conditions and flow characteristics.
Integration in Marine Fuel Systems
The ZT-100 inline water cut analyzers can be integrated into marine fuel and lubrication systems to provide continuous monitoring.
Typical system features include:
- Inline installation for real-time water detection
- Output signals via 4–20 mA or Modbus
- Compatibility with marine fuels, biofuels, and lubrication oils
- Integration with IPCO Power fuel treatment systems
Continuous monitoring helps operators detect contamination early and maintain stable operating conditions.
