Water-in-Oil Measurement for Petrochemical and Industrial Systems
Introductie
The ZelenTech ZT-100 Series provides accurate inline water-in-oil measurement for petrochemical and industrial process systems. The analyzers are designed for installation in inline, bypass, or insertion configurations and can be integrated into pipelines ranging from 1 to 48 inches in diameter.
Using capacitance-based measurement technology, the ZT-100 delivers reliable real-time water cut data without the need for sampling or separation.
This makes the system suitable for process control, blending operations, and monitoring of water contamination in hydrocarbon streams.
Typical Applications
Inline water-in-oil monitoring can support several industrial processes:
- Water detection in crude oil and hydrocarbon streams
- Blending control and quality assurance
- Monitoring of water separation efficiency
- Custody transfer verification
- Leak detection in pipelines and process systems
Key Features
- Inline water cut measurement providing real-time water content data
- Temperature and optional density compensation for stable measurements
- Optional flow conditioning to improve measurement reliability
- Industrial communication interfaces including 4-20 mA, HART and RS-232
- Low power consumption using a 24 VDC supply
- Industrial certifications for safe operation in process environments
Industrial Applications
The ZT-100 series is used in a wide range of sectors, including:
- Refineries
- Tank terminals
- Petrochemical plants
- Pipeline systems
- Offshore production facilities
These environments require continuous monitoring of water contamination to maintain product quality and protect downstream equipment.
System Integration
The ZT-100 analyzers are designed for integration into process control systems. Optional static mixers and flow conditioning elements can be installed to ensure stable measurement conditions.
The sensors are manufactured under the ISO 9001 quality system and support standard industry protocols for monitoring and control.

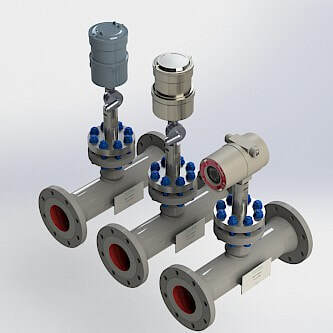

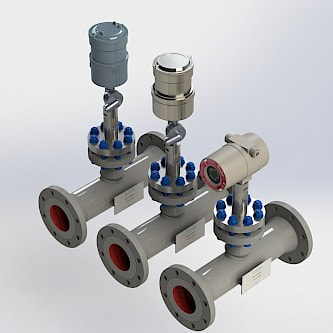

F-Series:
- Slip-On Flanges or Weld Neck Flanges.
- ANSI, DIN or JIS Flanges
- Available from 4 inch to 48 inch
- Compatible with any Piping Specification

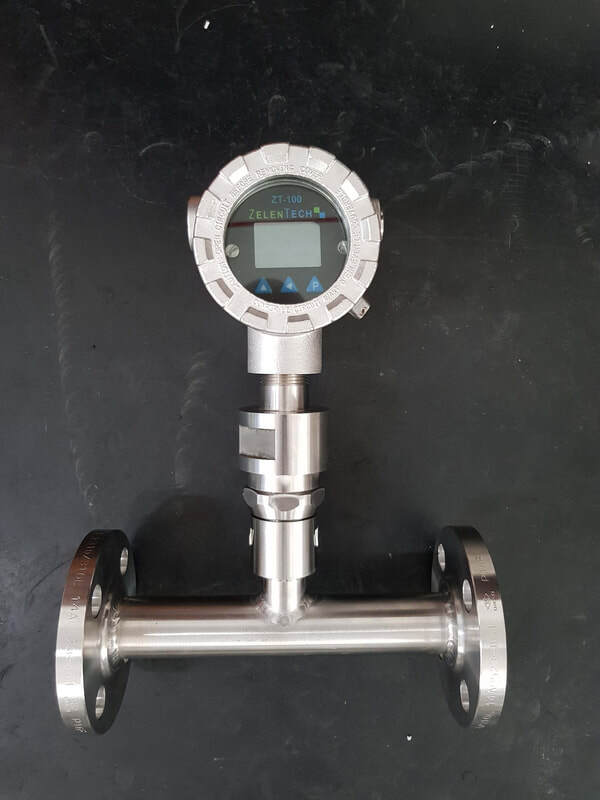

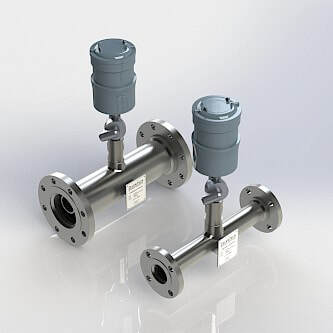

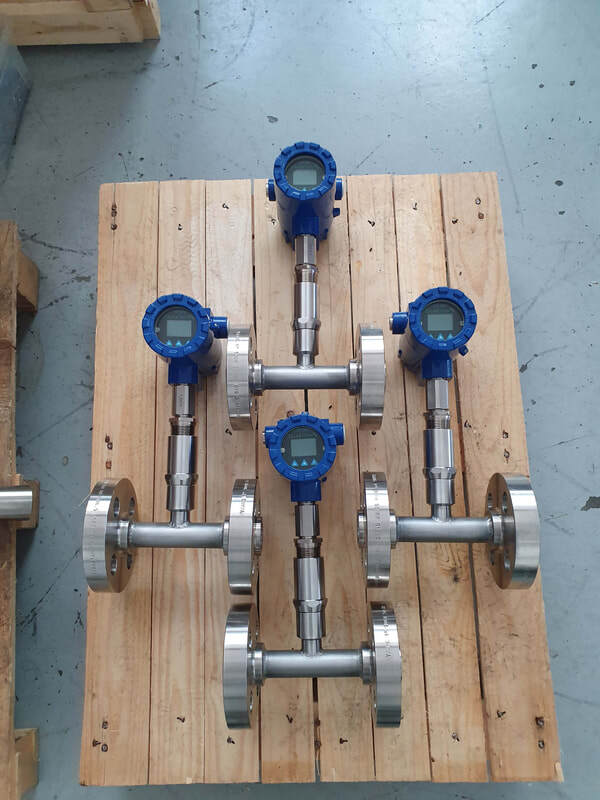

S-Series:
- Slip-On Flanges or Weld Neck Flanges.
- ANSI, DIN or JIS Flanges
- Flange sizes from 1 inch to 8 inch
- NPT, BSP, BSPT
- Threaded sizes from 1 inch to 3 inch

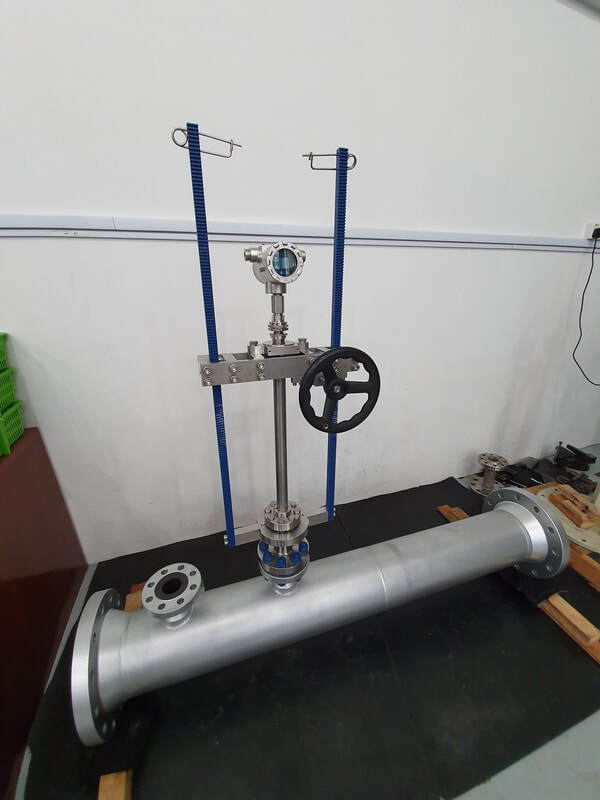

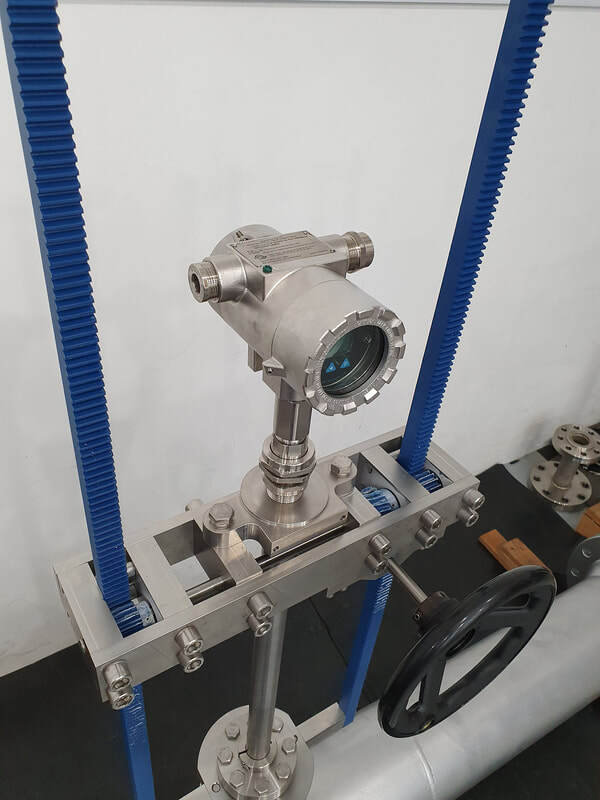

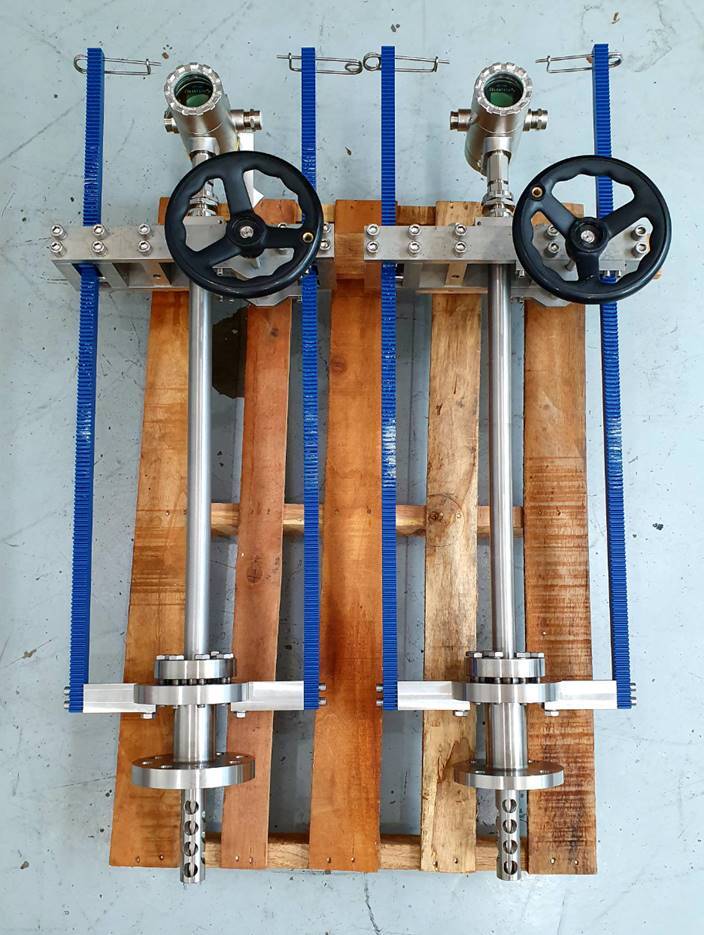

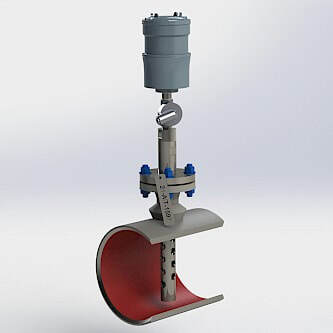

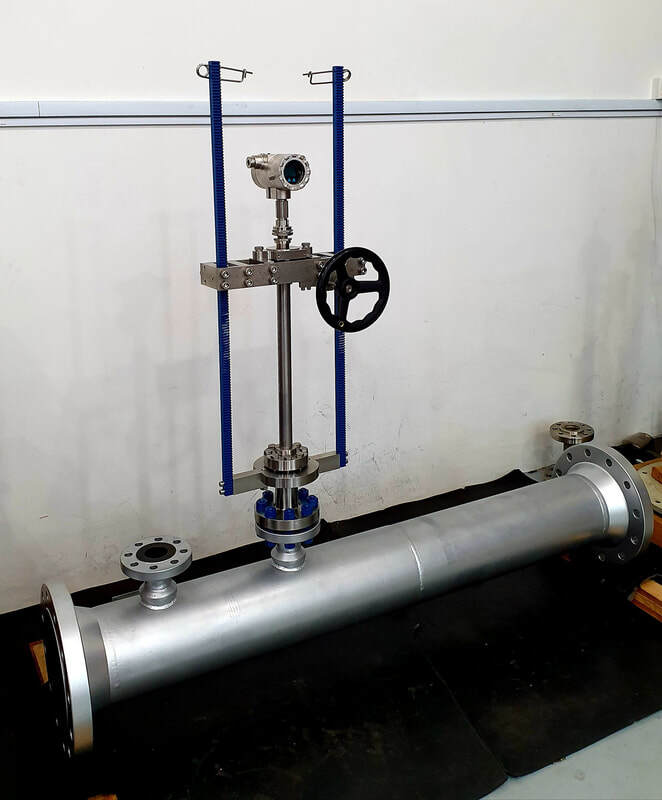

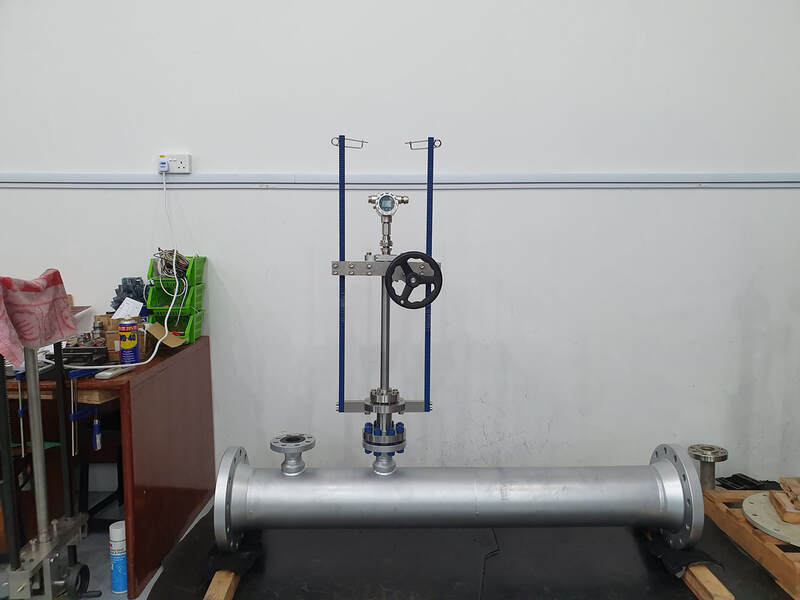

I-Series:
- Fits in 2 inch or 3 inch nozzles
- ANSI or DIN Flange
- Raised Face or RTJ Flange
- Insertion into lines from 12 inch to 48 inch
- Compatible with any Piping Specification
- Retractable

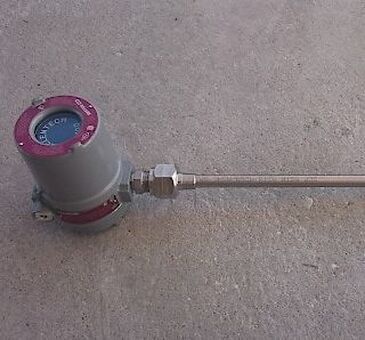

T-Series:
- Sits through elbows into 2 inch or 3 inch lines.
- Suits larger pipes using adaptors
- Quick and simple setup
- Compatible with existing 3/4 inch nozzles made for similar instrument designs
- Compatible with any Piping Specification
- Retractable
