Why sludge formation in marine fuel systems remains a persistent challenge

Excessive sludge formation in separators and purifiers remains a common operational challenge on vessels operating on residual fuels such as HFO. In many cases, the problem becomes visible when separators suddenly struggle to cope with the fuel quality onboard.


Operators often report situations where sludge production increases dramatically, separators need frequent cleaning, or purification capacity becomes insufficient.


This is often not caused by a single contaminant, but by fuel instability.


Residual fuels contain heavy hydrocarbons, asphaltenes, catalytic fines and other refinery by-products. When fuels from different sources are mixed, or when small amounts of another product remain in storage tanks, the stability of the fuel can change. Even minor contamination with another product can trigger asphaltene precipitation and sludge formation.


Once these unstable structures form, they can grow rapidly into large agglomerates that trap solids and sediments.

Solidified Heavy Fuel Oil (HFO)

When separators can no longer cope

Under normal operating conditions, marine separators are designed to remove water, catalytic fines and sediments from the fuel. However, when fuel instability causes excessive sludge formation, the separator can quickly reach its operational limits.


Typical symptoms include:

  • Rapid sludge accumulation in the purifier bowl
  • Frequent sludge discharge cycles
  • Reduced separation efficiency
  • Increased sludge disposal volumes


In these situations, the separator is no longer primarily separating contaminants, but instead spending much of its capacity processing large, unstable fuel agglomerates. As a result, purifier efficiency decreases while maintenance requirements increase.

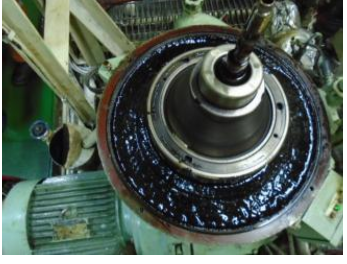

Clogged Seperator

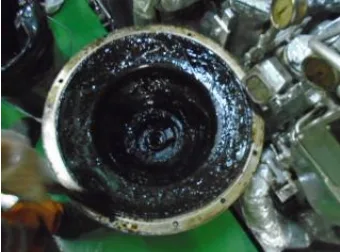

Inside a clogged seperator

Improving fuel condition before separation

One way to stabilise problematic fuels is to improve the physical condition of the fuel before it reaches the separator.


The FID Reducer fuel homogenizer is installed upstream of the purifier in the fuel treatment line.


The homogenizer uses controlled mechanical shear forces to break down large asphaltene clusters and fuel agglomerates into much smaller, more stable particles. A simple comparison is a coffee grinder. Whole coffee beans expose only a limited surface area, making extraction less efficient. Once the beans are ground into fine, uniform particles, the coffee can be extracted much more effectively.


The same principle applies to residual fuel. The homogenizer does not alter the chemical composition of the fuel. Instead, it mechanically reduces the size of unstable fuel structures, creating a more homogeneous fuel that is easier for the purifier to process.


By conditioning the fuel before it enters the separator, the purifier can focus on efficiently removing water, catalytic fines and sediments instead of dealing with oversized sludge agglomerates.


Importantly, this process is entirely mechanical and does not rely on chemical additives.

Helping separators handle difficult fuels

While fuel homogenization is often associated with sludge reduction—typically up to 80%—the primary benefit in difficult fuel situations is different.


When separators struggle with unstable fuels, the objective is often to restore normal purifier performance.


By reducing large agglomerates before the purifier, the FID Reducer fuel homogenizer provides a more stable and uniform fuel stream. This allows the separator to operate closer to its intended efficiency and improves its ability to separate water, catalytic fines and sediments.


Operators commonly observe:

  • Stabilised purifier operation
  • Improved separator efficiency
  • Lower sludge accumulation
  • Longer intervals between purifier cleaning


In practice, the FID Reducer is frequently installed on vessels where separators have difficulty coping with increasingly variable residual fuel qualities. Rather than replacing or modifying the separator, the homogenizer helps the existing purification system perform as originally designed.

Supporting fuel system reliability onboard

Residual fuel quality continues to vary due to changing refinery processes, blending practices and the introduction of new fuel components. As a result, maintaining stable fuel treatment has become increasingly important.


Mechanical fuel conditioning with a fuel homogenizer provides a practical way to stabilise difficult fuels before separation. By reducing the size of unstable fuel agglomerates, the purifier can operate more efficiently, maintenance can be reduced and overall fuel treatment performance can improve.


For operators experiencing excessive purifier sludging, unstable residual fuels or reduced separator efficiency, installing a fuel homogenizer upstream of the purifier offers an effective solution without changing the fuel itself or relying on chemical additives.
